| Brand Name : | Meile |
| Model Number : | ML-178 |
| Certification : | CE, SGS |
| Price : | negotiable |
| Payment Terms : | T/T, Western Union |
| Supply Ability : | 100000m/month |
| Delivery Time : | 7 work days |
Available Truss Dimension
Truss Description
1.Truss size: customized
2. Truss specification: 300*300mm or 400*400mm, we choose the truss specification accroding to the whole truss project,
3. Main tube: Dia.50mm*3mm thickness,
4. Vice tube: Dia.30mm*2mm thickness,
5. Diagonal tube: Dia.25mm*2mm,
6. Connector type: bolt or spigot,
7. Shape: square, arch, circular, triangle or ladder truss,
8. Truss unit length: straight truss 0.5m-4m per piece or customized,
9. Color: silveryor black or customized is available,
10. Feature: light weight, strong, easy to set up and remove
Truss Tips
| Section | Truss Width L*W | Main Tube (Dia.*Thickness) | Beam Tube (Dia.*Thickness) | Diagonal Tube (Dia.*Thickness) | Max. Span | Loading capability |
| Truss 200*200 | 200*220 | 30*2 | 15*2 | 15*2 | 10m | 75kg |
| Truss 300*300 | 300*300 | 50*3 | 30*2 | 25*2 | 12m | 350kg |
| Truss 350*350 | 350*350 | 50*3 | 30*2 | 25*2 | 13m | 400kg |
| Truss 400*400 | 400*400 | 50*3 | 30*2 | 25*2 | 14m | 500kg |
| Truss 450*450 | 450*450 | 50*3 | 50*2 | 25*2 | 15m | 550kg |
| Truss 400*600 | 400*600 | 50*3 | 50*2 | 25*2 | 16m | 600kg |
| Truss 500*600 | 500*600 | 50*3 | 50*2 | 25*2 | 18m | 800kg |
| Truss 520*760 | 520*760 | 50*4 | 50*3 | 30*2 | 22m | 1000kg |
| Truss 600*760 | 600*760 | 50*4 | 50*3 | 30*2 | 24m | 1500kg |
| Truss 760*910 | 760*910 | 50*4 | 50*4 | 30*2 | 30m | 1500kg |
Maintenance and Repair
1. Clean the truss often, keep it clean and dry.
2. Frequently check the soundness of accessories.
3. You should handle timely if some accessories are discovered.

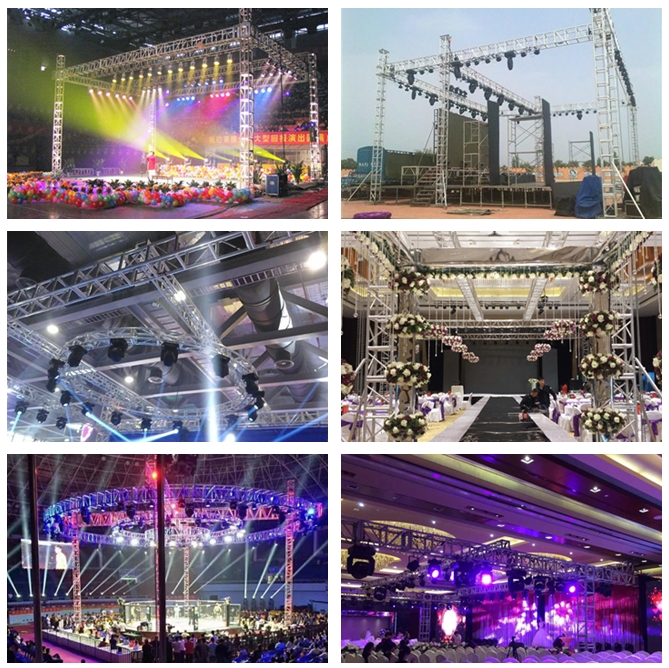

Truss Application
Aluminum truss systems are designed for a variety of applications and can be used to support lighting, sound equipment, digital signs and banners.It is widely used for outdoor indoor activities, such as exhibition, promotion, concert, wedding, party, festival ceremony etc.
It is durable,light weight with high loading capacity. Raw material is precipitation hardening aluminum alloy, Containing magnesium and silicon as its major alloying elements. It has good mechanical properties, exhibits good weld-ability. It also has good effect of compression resistance, corrosion resistance and anti-oxidation. Welcome your inquiry If you’re unsure which truss design is suitable for you, we’re happy to provide you with our professional suggestions and our high quality and affordable truss system.
|
|
