Guangzhou Meile Exhibition Equipment Co.,Ltd We are a professional manufacturer of aluminum stage truss and aluminum wedding party tent
7 Years
| Ask Lasest Price | |
| Brand Name : | Meile |
| Model Number : | ML-013 |
| Certification : | CE, SGS |
| Price : | negotiable |
| Payment Terms : | T/T, Western Union |
| Supply Ability : | 100000m/month |
| Delivery Time : | 10-15 work days |

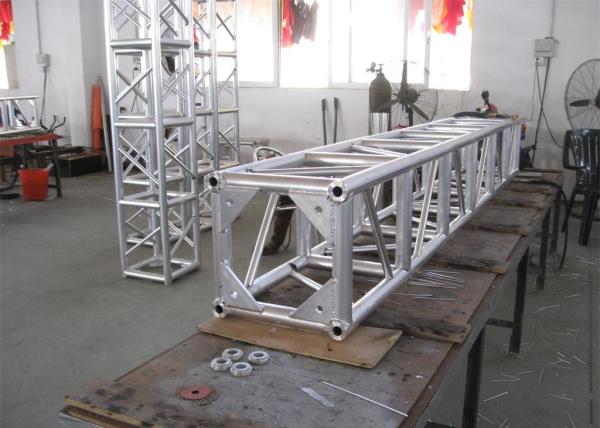

Aluminum Truss Specification
| Section | Main Tube | Max. Span | Symmetrical | Category |
| 200*200mm | φ30*2mm | 8m | 280kg | Light Duty Truss |
| 290*290mm | φ50*3mm | 12m | 600kg | |
| 350*350mm | φ50*3mm | 14m | 600kg | |
| 389*389mm | φ50*3mm | 16m | 600kg | Middle Duty Truss |
| 520*520mm | φ50*3mm | 18m | 700kg | |
| 400*600mm | φ50*3mm | 18m | 700kg | |
| 500*600mm | φ50*3mm | 18m | 800kg | Heavy Duty Truss |
| 520*760mm | φ50*4mm | 24m | 1000kg | |
| 600*760mm | φ50*4mm | 28m | 1200kg |
Installation: installation drawing is available, or we can assign our engineer to
your local to make the installation guidence.
Transport Type: By Sea, By Air, By GHL/UPS Express
Price Term: EXW, FOB, CIF
Custom-made: 100% Customized.
Aluminum Truss Description
| Material | Aluminum 6061/T6 or Aluminum 6082/T6. |
| Length available | 1m,2m,3m,4m. OEM offered. |
| Shape | Square,or triagle or circular |
| Type | Bolt truss or spigot truss |
| Truss size | 400*400mm, other truss size we could supply: 300*300mm,450*450mm,500*500mm or 520*760mm etc. |
| Certification | CE,SGS |
| Characteristics | 1.Durable,Light Weight with high loading capacity. 2.Raw material is hardening aluminum alloy, Containing magnesium and silicon as its major alloying elements. Good loading capacity. 3.It has good mechanical properites, exhibits good weldability. 4.It also has good effect of Proof Stress, corrosion resistance, antioxidation. |
1.LED truss to hang LED screen / Iinear speakers or decorate truss
2.Background truss: to hang up lights and LED, screen for truss frame
3.Truss system: to hold events( for light, LED, speaker, audio, and so on)
4. .It will be a full set of performance equipment after put the aluminum stage under this truss.
Q: Are you a factory? And where are you?
A: We are large factory and located in Baiyun District, Guangzhou City, Guangdong Province, China. It is about 30 minutes by taxi from Guangzhou airport to our factory.
Q: What are the payment terms?
A: We accept T/T , Western Union.
Q: What about the delivery time?
A: The time is up to your order quantity, normally 5 to 10 working days after confirmation of your payment of deposit.
If you need it in urgent, we will make a priority arrangement for your order.
Q: Do you provide OEM service?
A: Of course. We have a professional team who own rich experience in designing and manufacturing.
Please send us the high definition images, text, logo and how would you like to arrange them. We will try our best to put your ideas into effect and sent you finished files for confirmation.
Q: Can we have our Logo or company name to be printed on your products or package?
A: Sure. We have laser machine which can make your logo in truss perfectly.
Q: What kind of packaging you provide?
A: Standard export air bubble film or woven bag. Flight cases and pallet are also availbale.
Q: Where is the port of loading?
A: Port Huangpu in Guangzhou or Ports in Shenzhen.
Remark
Based on its connection way, aluminum truss can be devided into spigot truss and screw/bolt truss;
And based on its shape, we can devide truss into ladder truss, triangle truss, square truss and arch truss.
Different Truss Models and Designs could be custom-made, weclome
your inquiry sincerely if you have any interests about it.
|
|
