Guangzhou Meile Exhibition Equipment Co.,Ltd We are a professional manufacturer of aluminum stage truss and aluminum wedding party tent
7 Years
| Ask Lasest Price | |
| Brand Name : | Meile |
| Model Number : | ZC-113 |
| Certification : | CE, SGS |
| Price : | negotiable |
| Payment Terms : | T/T, Western Union |
| Supply Ability : | 100000m/month |
| Delivery Time : | 7-10 work days |

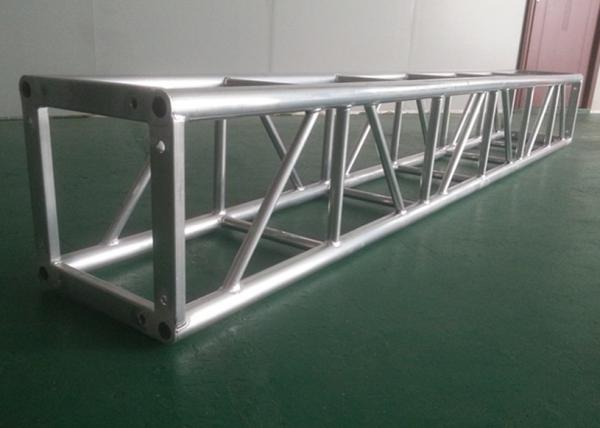

Truss Description
Aluminum truss systems are designed for a variety of applications and can be used to support lighting, sound equipment, digital signs and banners. It can be made into different sizes, length and shape, including straight lengths, corners and curves; They are produced according to European standard EN13814 and welding EN1090. Installation manual and video are available for your installation. And our professioal engineer could be assigned to your local to make the installation guidence if you think it is necessary.
Aluminum Truss Specification
| Usage | Concert; Events; Exhibition; Wedding; Performance; Fashion show etc. |
| Truss Material | Aluminum Alloy 6061-T6/6082-T6 |
| Truss Type | Screw Truss or Spigot truss |
| Light Duty Truss | 200*200mm, 290*290mm, 300*300mm or customized |
| Medium Duty Truss | 390*390mm, 400*400mm, 450*450mm, 500*500mm,400*600mm; 500*600mm or customized |
| Heavy Duty Truss | 520*760mm, 600*760mm, 670*1010mm, 800*1200mm or customized |
| Truss Shape | Ladder Truss; Triangular Truss; Square Truss; Arch Truss; Circle Truss; |
| Main Tube Thickness | φ25*3mm; φ32*3mm; φ38*3mm; φ50*3mm; φ50*4mm; φ60*6mm |
| Vice Tube Thickness | φ20*2mm; φ25*2mm; φ50*2mm; φ50*3mm |
| Brace Tube Thickness | φ16*1.2mm; φ20*2mm; φ25*2mm; φ30*2mm |
| Length | 0.5m; 1m; 1.5m; 2m; 3m; 4m; or customized |
| Color | Silvery, Black or customized |
Packing and Delivery
1. the aluminum frame is packed by buble filme;
2. the screw connector is packed by carton box or flight case;
3. customized as your request
|
|
