Guangzhou Meile Exhibition Equipment Co.,Ltd We are a professional manufacturer of aluminum stage truss and aluminum wedding party tent
7 Years
| Ask Lasest Price | |
| Brand Name : | Meile |
| Model Number : | ML-180 |
| Certification : | CE, SGS |
| Price : | negotiable |
| Payment Terms : | T/T, Western Union |
| Supply Ability : | 100000m/month |
| Delivery Time : | 7 work days |
Specification of aluminum truss frame
Light duty aluminum truss: 200*200mm, 250*250mm, 300*300mm,
Medium duty aluminum truss: 400*400mm, 450*450mm, 500*500mm, 400*600mm,500*600mm, Customized,
Heavy aluminum truss: 520*760mm; 600*760mm; 760*910mm,
Main tube: 50*5mm, 50*4mm or 50*3mm,
Brace tube: 50*3mm, 50*2mm or 30*2mm,
Diagonal tube: 30*2mm or 25*2mm,
Truss joint: screw or spigot,
Truss length: from 0.5 to 4m per piece.
Truss Tips
| Section | Truss Width L*W | Main Tube (Dia.*Thickness) | Beam Tube (Dia.*Thickness) | Diagonal Tube (Dia.*Thickness) | Max. Span | Loading capability |
| Truss 200*200 | 200*220 | 30*2 | 15*2 | 15*2 | 10m | 75kg |
| Truss 300*300 | 300*300 | 50*3 | 30*2 | 25*2 | 12m | 350kg |
| Truss 350*350 | 350*350 | 50*3 | 30*2 | 25*2 | 13m | 400kg |
| Truss 400*400 | 400*400 | 50*3 | 30*2 | 25*2 | 14m | 500kg |
| Truss 450*450 | 450*450 | 50*3 | 50*2 | 25*2 | 15m | 550kg |
| Truss 400*600 | 400*600 | 50*3 | 50*2 | 25*2 | 16m | 600kg |
| Truss 500*600 | 500*600 | 50*3 | 50*2 | 25*2 | 18m | 800kg |
| Truss 520*760 | 520*760 | 50*4 | 50*3 | 30*2 | 22m | 1000kg |
| Truss 600*760 | 600*760 | 50*4 | 50*3 | 30*2 | 24m | 1500kg |
| Truss 760*910 | 760*910 | 50*4 | 50*4 | 30*2 | 30m | 1500kg |
Feature and advantages of aluminum truss frame
1) flexible, easy to assemble and disassemble,
2) screw or spigot connection way as your request, easy to set up
and transport,
3)the capacity and stability of aluminium truss is strong to lift
the speaker and lighting systeme,
4)high quality and excellent after- sale service, we offer 2 years
warranty,
5) All kinds of stage truss can be retread and reused because it have high corrosion resistence,non-rust with high welding and good quality of alloy aluminium tube
Application of aluminum truss frame

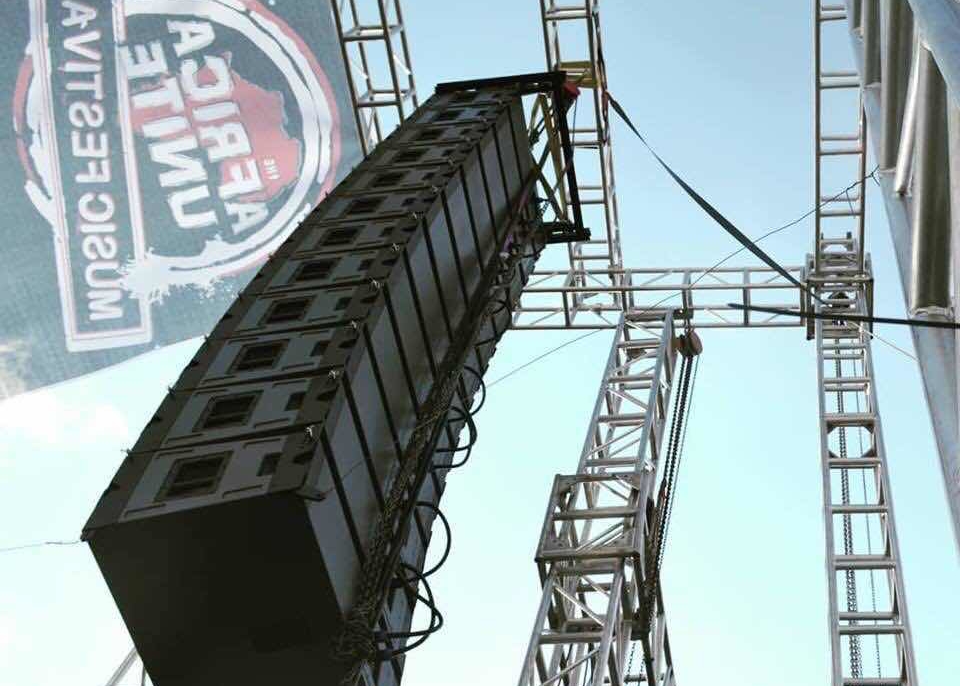

Aluminum truss systems are designed for a variety of applications and can be used to support lighting, sound equipment, digital signs and banners.It is widely used for outdoor indoor activities, such as exhibition, promotion, concert, wedding, party, festival ceremony etc.
Please contact me if you have no idea about which truss design is suitable for you. We will supply you our professional suggestions.
We’re happy to provide you with high quality and affordable truss system.
