Guangzhou Meile Exhibition Equipment Co.,Ltd We are a professional manufacturer of aluminum stage truss and aluminum wedding party tent
7 Years
| Ask Lasest Price | |
| Brand Name : | Meile |
| Model Number : | ZC-112 |
| Certification : | CE, SGS |
| Price : | negotiable |
| Payment Terms : | T/T, Western Union |
| Supply Ability : | 100000m/month |
| Delivery Time : | 7-10 work days |

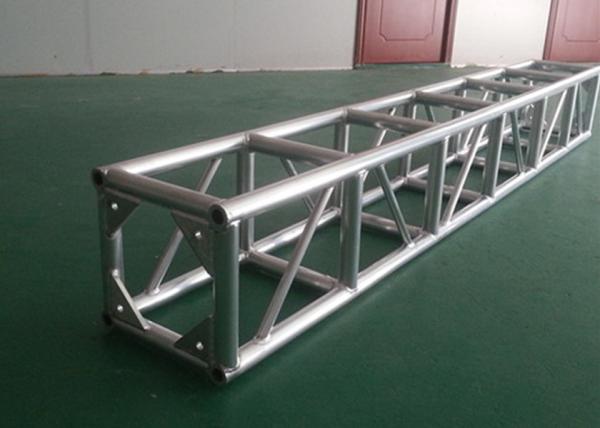

Truss Description
Aluminum truss systems are designed for a variety of applications and can be used to support lighting, sound equipment, digital signs and banners. It can be made into different sizes, length and shape, including straight lengths, corners and curves; They are produced according to European standard EN13814 and welding EN1090. Installation manual and video are available for your installation. And our professioal engineer could be assigned to your local to make the installation guidence if you think it is necessary.
Aluminum Truss Specification
| Section | Main Tube | Max. Span | Loading capability | Category |
| 200*200mm | φ30*2mm | 10m | 75kg | Light Duty Truss |
| 300*300mm | φ50*3mm | 12m | 400kg | |
| 350*350mm | φ50*3mm | 13m | 400kg | |
| 400*400mm | φ50*3mm | 14m | 500kg | Middle Duty Truss |
| 450*450mm | φ50*3mm | 15m | 550kg | |
| 400*600mm | φ50*3mm | 16m | 600kg | |
| 500*600mm | φ50*3mm | 18m | 650kg | Heavy Duty Truss |
| 520*760mm | φ50*4mm | 20m | 1000kg | |
| 600*760mm | φ50*4mm | 24m | 1500kg |
Features
1 . Material: Aluminum alloy 6082-T6/6061-T6,
2 . Connector type: bolt or spigot,
3 . Color: silveryor black or customized is available,
4 . Shape: square, arch, circular, triangle or ladder truss,
5 . Truss unit length: straight truss 0.5m-4m per piece or customized
6 . Truss size: 200*200mm, 300*300mm, 350*350mm, 400*400mm, 450*450mm, 400*600mm or 520*760mm. we choose the truss size accroding to the whole truss project.
7 . Feature: light weight, strong, easy to set up and remove
9 . Usage: roof truss system, concert truss, event truss, fashion show light truss, auto show lighting truss, LED screen truss, speaker truss, exhibition booth truss, staging truss, lighting truss,etc.
