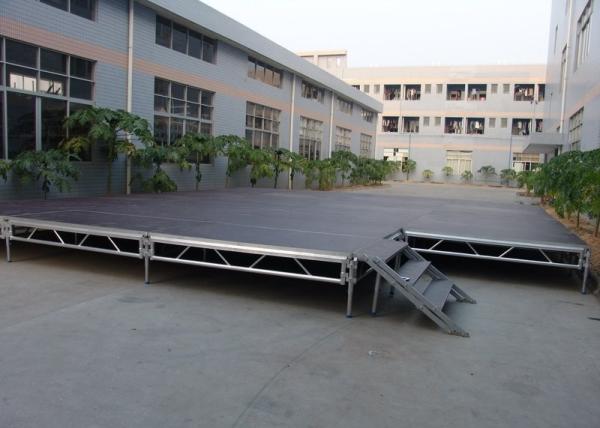

Description of Concert Stage Podium
This portable concert stage is made up of aluminum frame structure
and 18mm thickness stage board. There are three kinds optionals
stage boards, they are plywood , plexiglass, tempered glass
respectively. Generally, we could offer four specifications: 1.22 m
x 1.22 m (4ftx 4ft), 1.22m x 2.44m (4ft x 8ft), 1m x 1m (3.3ft x
3.3ft) and 1m x 2m (3.3ft x 6.6ft )
The stage height could be adjustablle. It could be set up on uneven ground for every stage leg and stage foot can be adjusted independently. Customstages with personalized sizes and height can be achieved.
This portable stage mainly used for all kinds of events, parties,
model shows, music shows, fashion shows, and other outdoor and
indoor activities.
Material
Frame: Aluminium alloy 6061- T6, main tube is Dia.50mm*3mm, vice tuble is Dia.30mm*2mm
Top platform: 18mm thickness plywood or plexiglass, tempered glass platform
Unit Stage Size
1.22x1.22m, 1.22x2.44m or 1x1m, 1x2m (you can put several pieces together or divided )
| Stage Specifications | Optional Top Platform | Frame Materia | Tube Size | Adjustable height range | |
| 1.22m*1.22m | 4ft*4ft | plywood or Acrylic or tempered glass | Aluminum alloy 6061T6 or 6082T6 | Main tube:50*3CM Brace tube:25*2CM | A: 0.4-0.6M(1.31-1.97ft) B:0.6-1M(1.97-3.28ft) C:0.8-1.4m(3.28-4.59ft) D:1-1.4m(3.28-4.59ft) E:1.6-2m(5.25-6.56ft) F: customized, the total adjutable range is 0.4m, for example, if the basic stage height you need is 1m, it will be adjustable into 1.4m. |
| 1.22m*2.44m | 4ft*8ft | plywood or Acrylic | |||
| 1m*1m | 3.3ft*3.3ft | plywood or Acrylic or tempered glass | |||
| 1m*2m | 3.3ft*6.6ft | plywood or Acrylic | |||
| Guardrail size is 1.22x1m or 2.44x1m or customized as your request,
its frame material is aluminum alloy, main tube is Dia.50*3mm,
brace tube is Dia.25*2mm | |||||
Weight-Loading
750kG/m2
Optional stage accessories
Stage guardrail, stage skirt, aluminum truss, aluminum stage etc.
Features
Easy to move, assemble and disassemble,
Height can be adjustable, stage size and shape could be
custom-made,
a big stage size can be separate into different sizes according to your different occasion.
Shipping
We offer many shipping options for our customers, we keep good
relationship with shipping company directly, such as APL, Cosco,
CMA and so on. We can offer you a best shipping cost.
